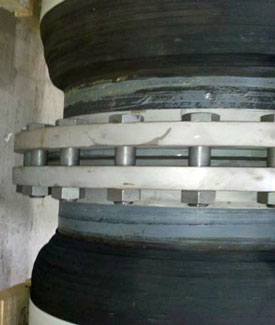

Custom Large OD Hose Couplings & End Constructions

We Fabricate Fittings to Any Specification, Any Standard, and Any Material Specification

  • ANSI/ASME, JIS, DIN PN or Custom Flange Dimension
  • Forged or Plate Flange
  • A53/A106 Seamless Pipe or Roll to Size – A36, A516gr 70, 304ss, A182 F55 etc.
  • A105/A105N/SA35OLF2 etc.
  • Lifting Lugs/Attachments to your Specifications
  • ASME B31.3 Section IX Certified Welders Upon Request – ALL Welding Performed by AWS Certified Welders
  • All Styles: Cam Lock, NPT, Built In Nipple, Rubber Lined Built In Nipples, Swaged, Crimped, Built In Rubber Flanges, Beaded End with Ductile Iron Swivel Ring
  • Metric Sizes Available
  • Epoxy Coat Exposed Steel Surfaces to your Specifications
  • Salem-Republic Stocks Two Types of Epoxy: Duraplate 235 Black Multi-Purpose (Marine or Industrial) and Epophen Light Gray Heat Resistant/Marine Grade

Hose Coupling and Connector Custom-Build Capabilities

Salem-Republic Rubber manufactures extremely large diameter hose and rubber pipe end points and connectors in almost limitless variations based on customer-specific needs.

To learn more about some of the customization capabilities,
click on a heading below:

[dt_verticaltab title=”Customization Capabilities” nav_position=”left” spy=”none” scroll_delay=”300″][dt_verticaltab_item title=”End Connection Options”]

End Connection Options

To best tie into your existing pipe and hose, we provide a number of termination connections: Cam Lock, NPT – National Pipe Thread Taper, Built In Nipple, Rubber Lined Built In Nipples, Swaged, Crimped, Built In Rubber Flanges, Beaded End with Ductile Iron Swivel Ring

[/dt_verticaltab_item][dt_verticaltab_item title=”Custom Lengths / Diameters”]

Custom Lengths / Diameters

We can produce heavy-wall, large OD diameter connector points with custom-engineered diameters to match existing process pipe or hose-to-hose connections required. I.D.’s or O.D.’s up to 42 inches.[/dt_verticaltab_item][dt_verticaltab_item title=”Custom Flanges / Lift Points”]

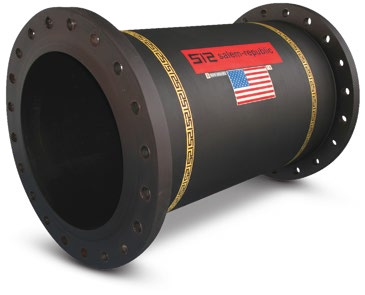

Custom Flanges / Lift Points

Depending upon on how the hose will being handled, total hose diameter, and your service conditions, Salem-Republic’s engineers help determine whether forged or plate steel flanges best meet your needs. Likewise we supply lifting lugs / attachment points to your specifications.[/dt_verticaltab_item][/dt_verticaltab]
